Leading Tape & Reel Services Provider
We tape the parts everyone tapes, we tape the parts nobody tapes. It's a fact.
NPI Materials provides tape and reel services, other SMT component preparation services and carrier and cover tape products to leading EMS, Semiconductor Manufacturers, Electronic Component Distributors and Defense Contractors. We are a high-mix, any volume operation featuring the broadest selection of carrier tape and accompanying packaging and Tape and Reel services in North America we are located in Dallas TX, central to all points in the Americas. An Authorized 3M Distributor.
Investigate Latest developments in electronic component packaging below:
Most Recent Additions to Catalog Product Tape & Reel Portfolio - Update July 2020.
| GPT | Mfg | Mfg PN | Image |
Notes |
| TFBS4711 Sideview/ Topview | Vishay TFBS4711 in sideview position |
 |
|
| PDIP6 | ON Semi case 646CE/FOD410x |  |
Exclusive Tape and Reel Service |
| SSOP-36 | TI DWJ-36 package | Image coming | Exclusive Tape and Reel Service |
| 18S102 | Rosenberger 18S102 MiniSMP |  |
Exclusive Tape and Reel Service |
| SFH-110 | Samtec SFH-110 |  |
Exclusive Tape and Reel Service |
| QFN-5.5X10mm | TI NJY-54 & NJX-64 packages |  |
Exclusive Tape and Reel Service |
| R222 | Radiall R222 package |  |
Exclusive Tape and Reel Service |
| ST20_J3 & 5 | AVX High-CV SMPS Capacitors J-lead |  |
Exclusive Tape and Reel Service |
| AMP-5177986-2 | TE AMP-5177986-2 |  |
Exclusive Tape and Reel Service |
| AMP-5179031-2 | TE AMP-5179031-2 |  |
Exclusive Tape and Reel Service |
| AMP-5179009-1 | TE AMP-5179009-1 | image coming | Exclusive Tape and Reel Service |
| SDA07-12 | C&K Low profile DIP switches |  |
Exclusive Tape and Reel Service |
| 59170-SMRS | Littelfuse |  |
Exclusive Tape and Reel Service |
| 7209-1151-549 | Radiall SSMB straight Male Jack | image coming | Exclusive Tape and Reel Service |
| M27/367- | Delevan M27/363 Power Inductors |  |
Exclusive Tape and Reel Service |
| BGA-12X14mm | Micron 170-pin BGA "BG" Package . |  |
Exclusive Tape and Reel Service |
| QT75 | QT75 Oscilator Package |  |
Exclusive Tape and Reel Service |
| 0201 | Any 0201 Passive from any Mfg. |  |
2000 meter rolls available |
| SSB connector | Omnetics SSB series Nano-Connector |
 |
|

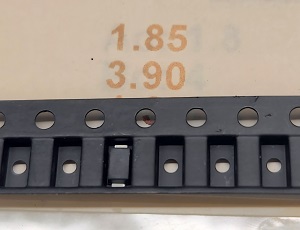

| SOD-80 "MiniMELF" | SOD-80 T & R |
 |
|
| WLCSP-2X3mm | Bare Die T & R |
No Photo |
|
| 1210-2.8mm | Hi-Cap 100uF+ T & R |
 |
|
| PA08xxNL | Pulse PA08xxNL series T & R |
 |
|
| USB-C | TE 2295018-2 T & R |
 |
|
| SM03-J240 | AVX SMPS Stacked Cap T&R |
|
|
| LTM-9X15mm Module | Linear Technology LTM 9X15mm Package T & R |
 |
|
| DFN-3X5mm | Linear Technology DHC Package T & R |
 |
|
| TO-268AA/D3Pak | Littelfuse D3Pak T & R |
 |
|
| LGA-6.5mm | Mighty Gecko T & R |
 |
|
| DFN-3x4.5mm | 14pin TI DMT package |
|
|
| HFCBGA-7X11mm | 104pin 88E2110 |
Image coming |
|
| QFN-3.5X6mm | QFN-3.5X6mm |
Image coming |
|
| QFN-3.5X4mm | TI RRK0016A package |
Image coming |
|
| LSSOP-30 | JEITA P-LSSOP30-0300-0.65 Renesas PLSP0030JB-B |
 |
|
| 1210-V | 1210-1.45 case mounted vertically |
Image coming |
|
| 1812-1.45mm | Standard 1812 case 1.45 thick |
 |
|

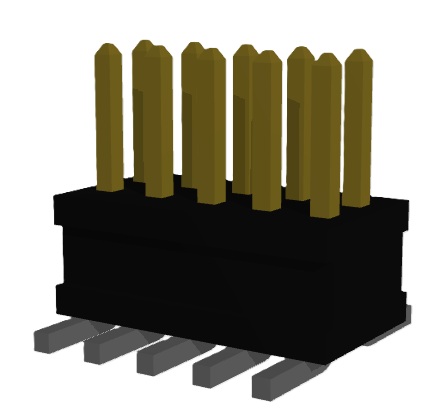

| FH1.27-43 8P | Hirose FH1.27-43 Low Profile Headers |
 |
|
| FH1.27-43 12P | Hirose FH1.27-43 Low Profile Headers |
 |
|
| QFN-4X8mm | QFN-4X8mm |
 |
|
| Zierick 1262 | Zierick 1262T |
 |
|
| OEM 7343-43 Tantalum | AVX-Vishay E-Case, Kemet X-Case 12mm wide |
 |
|
| DF13EA-30DP | Hirose DF13 1.25mm Headers |
 |
|
| DF13C-12P | Hirose DF13 1.25mm Headers |
 |
|

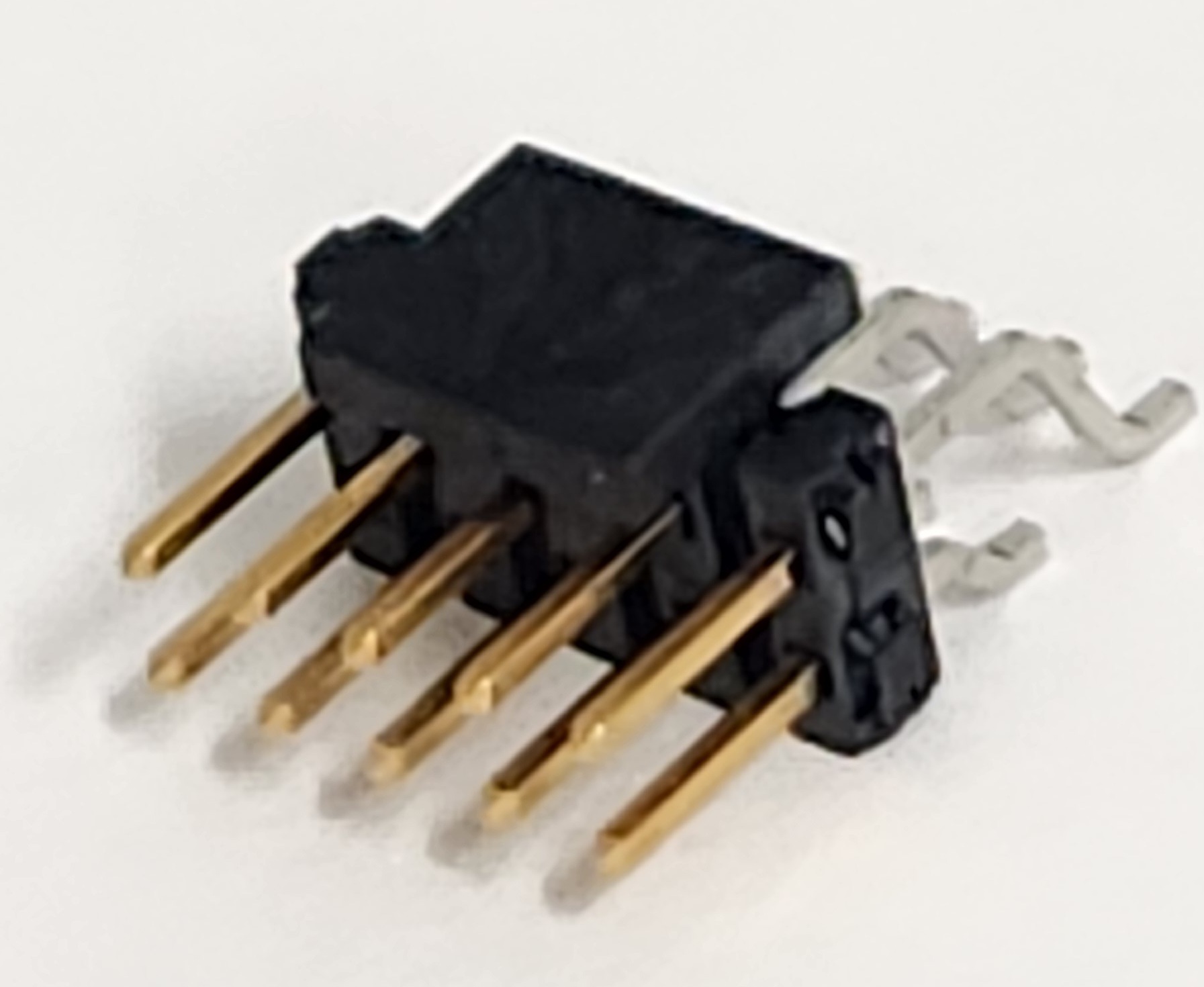

| DF11CZ | Hirose DF11 2mm 2-row Headers |
 |
|
| 90_MMCX | Huber+Suhner 90_MMCX-S50 RF-Coax |
 |
|
| LGA-9X10mm | 9mm X 10mm X 3.3mm |
image coming |
|
| LTM-6.25mm | LTM4625Y |
 |
|

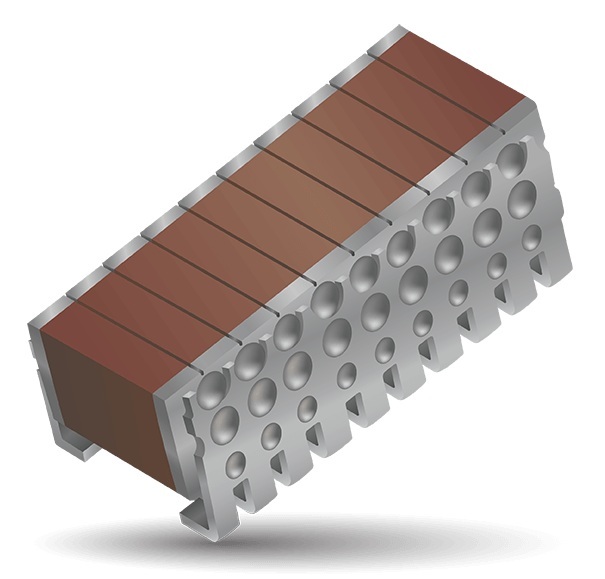

| SMD-1233-D | Stacked Tantalum Capacitor |
image coming |
|
| CSP-2227 | Alternate for Advantek SC70NS-BC |
image coming |
|
| N by 23.3mm | Series of carriers for Bo-23.3mm; 7.8, 9.0, 9.5mm |
image coming |
|
| S-06P001-AX | Alternate for Advantek 06P001-AX |
image coming |
|
| MIL-PRF-55365/4 D case | AVX TAZ-D Hi-Rel Tantalum Capacitor |
image coming |
|
| BGA-16mmDD | Broadcom 16mm BGA with heat-sink |
image coming |
|
| QFN-10.5mmD | 10.5mm QFN with 3.0mm thickness |
image coming |
|
| QFN-12.5mmD | 12.5mm QFN with 3.3mm thickness |
image coming |
|
| QFN-13mmD | 13mm QFN with 3mm thickness |
image coming |
|
| CTS-752-06 | CTS 752 6 pad resistor network |
image coming |
|
| CSP-5mmTT | Ultra Thin 5mm |
image coming |
|
| G6J-2FS | Panasonic/Omron G6J-2FS-Y and other solid state relays |
 |
|
| CTS-752-10 | CTS 752 10 pad resistor network |
 |
|
| LCCI-44 Package | Pulse LCCI-44 Hi-Power Inductors |
 |
|
| 87832-1420 | Molex 87832-1420 Box Header with cap |
 |
|
| BGA-47.5mm | Xilinx FLVC2104 (XCVU125,XCVU5P and XCVU7P) Package |
 |
|
| BGA-8X10.5mm | Micron 78-FBGA DA -or- RKB Package |
 |
|
| LTM-16mm 7.1D | Linear 16mm Module |
 |
|
| MIL-PRF-55365/4 B case | 2005 english/5113 metric |
 |
|
| MIL-PRF-55365/4 G case | 2711 english/6728 metric |
 |
|
| MIL-PRF-55365/4 H case | 2915 english/7338 metric |
|
|
| MIL-PRF-55365/4 E case | 2010 english/5125 metric |
|
|
| MIL-PRF-55365/4 F case | 2214 english/5634 metric |
|
|
| 0502DD (double deep) | Various Passives .74X1.32X1.27mm |
Image |
|
| QFN-2X2.5mm | New Thin Ko Pocket 0.7mm deep |
Image |
|
| 7343-15 | Tantalum V-case |
Image |
|
| SFM-110 & 115 | Samtec .050" Low Profile Tiger Eye™ High-Reliability Terminal Strip |
 |
|
| TFM-110 & 115 | Samtec .050" Tiger Eye™ High-Reliability Terminal Strip |
|
|
| Pico 68110 | Pico 68110 MIL 1553 |
 |
|
| Common Mode Choke | 13.5X13.5X7.4mm |
 |
|
| BGA-14X18mmD | Smart Module Interposer SH9Q8GPATI01 |
 |
|
| IHLP2525 | Vishay IHLP2525 Power Inductors |
 |
|
| TSP2X | Kemet double stack X case polymer capacitor |
 |
|
| PowerSO-10 | ST Micro PowerSO-10 -or- POSO10 replaces Advantek POSO10-BC |
 |
|
| 8-SSO | Broadcom Stretched SO-8 |
 |
|
| MAG-6.35mm | Generic 6mm X 4.3 coil |
New Offering |
|
| ST203L03 | AVX TurboCap L gull wing lead |
 |
|
| XTAL-3.2X5mm | Standard Crystal - 1.4mm thick |
New Offering |
|
| LGA-9mm | Similar to ATTLC-AC |
New Offering |
|
| GPPO-3mm | Corning GPPO B007-L47 |
 |
|
| FUSE-20mm | Bussman BK1-S505 |
 |
|
| BGA-42.5mm | Xilinx FF1696 FF1704 FF1760 |
|
|
| QFN-3.5X7mm ("36RUV") | Texas Instruments 36-pin VQFN |
 |
|
| C17 (1111) Vertical Cap | Knowles AH Series High-Q P90 Capacitor |
New Offering |
|
| P-SMP | Rosenberger P-SMP |
 |
|
| BGA-7.5X11mm | Samsung 78ball FBGA Package |
 |
|
| 15mm Stretched SO-8 | Broadcom ACNT-H313 |
 |
|
| LGA-8mm 56 pin- Tape & Reel | 2.6mm Deep LGA |
|
|
| BGA-8X12.5mm aka. 84BGA Tape & Reel | FBGA-60 and FBGA-84 for SDRAM from Micron, WBGA-84 Windbond and others |
 |
|
| WSON-08/ uPDFN aka. 8WSON, WSON MLP8 6X8mm Tape & Reel (horizontal orientation) | 8 Pin No Lead Flat likely successor to SOIC-8/MSOP/TSSOP-8 for serial memory |
 |
|
| Type 82_MMPX-S50-0-2/111_N | Huber-Suhner Tape & Reel |
 |
|
| 52 new Custom Tools | For various antenna's, modules and delay lines. We can replace any tape made by Accurate Carriers. |
 |
|
| Epcos/TDK T9 | T9 case lightning arrestor,surge,gas discharge products from TDK/EPCOS |
 |
|
| 0402DD | Precision Carrier tape for extra thick 0402 Packages |
 |
|
| DFN2510-10 | Industry standard DFN2510-10 /SOT1165-1 / DQA package |
 |
|
| PSM | API technologies Power Surface Mount Filter- PSM series |
 |
|
| 0502 | Case 02 (0502) MIL |
 |
|
| MiniUSB B | AJS08G5513 Metz-Connect(RIA) |
 |
|
| B88069 | EPCOS Lightning Arrestor |
 |
A80-C90XSMD aka B88069X1630T602 |
| RJSSE | Amphenol RJSSE-5080 jack |
 |
aka. RJ-45 |
| USB-MOD | Various USB modules |
 |
aka. Bluetooth |

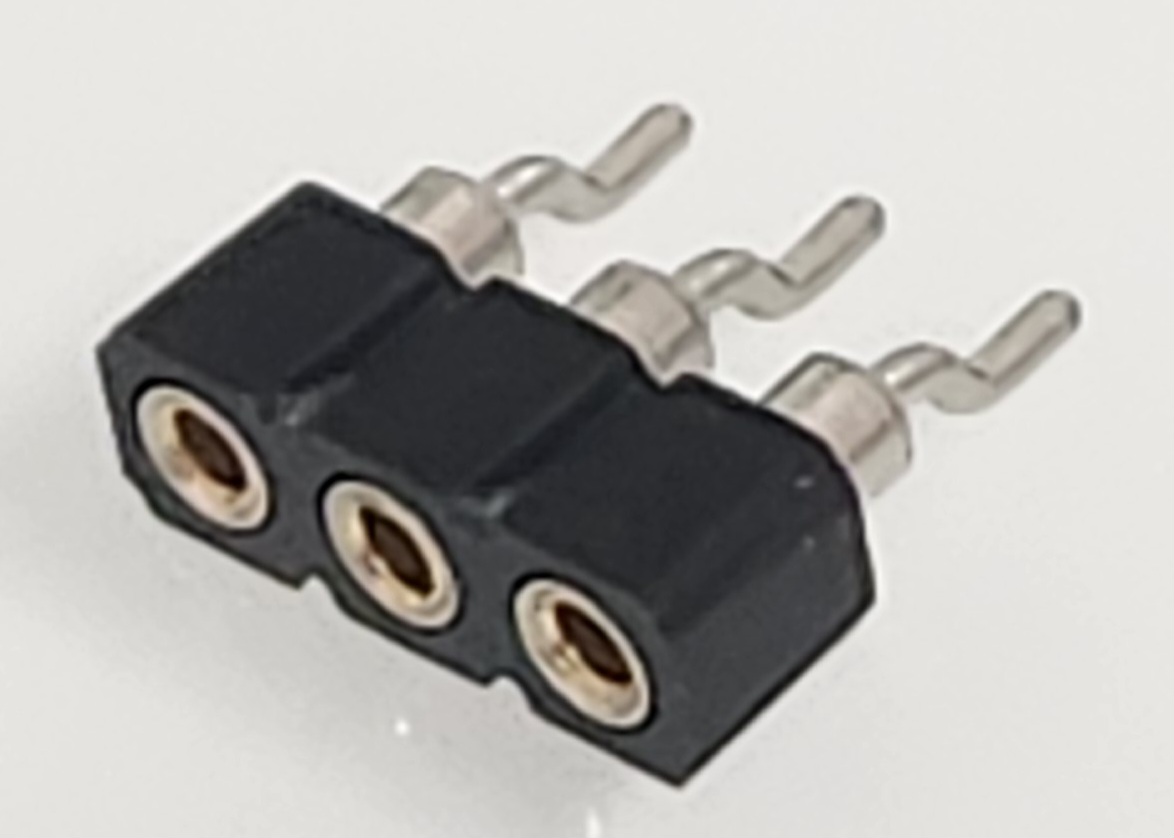

| Pin-Receptical | Mill-Max 0321 |
 |
Convert your 0321-0-43 into a 0321-0-67 and save money. Replacement for Accurate Carrier's YSMTSO-24586. |
| WSC0001 | Vishay WSC0001 |
 |
aka. 2515 package |
| SBH11 | Sullins SBH11-NBPC-D10-SM |
 |
Services offered: Basic T & R, |
| TQSMD_SA | Panasonic TQ2SA SMT Relay |
 |
Service offered: Basic T & R, |
| BGA-35mmDD | Intel FC style H-PBGA |
 |
Service offered: Basic T & R, |
| HX5200 | Pulse HX5200NL |
 |
Service offered: Basic T & R, |
| BGA-11.5X13mm | Micron EA Package |
 |
Service offered: Basic T & R, |
| Sonalert | Mallory ASI301Q |
 |
Service offered: Basic T & R, |
| BOXHEADER2X5 | CNC Tech 3220-10-0300-00 |
 |
Service offered: Basic T & R, |
| 0402OEM | Variation of 0402 Outline |
 |
Service offered: Basic T & R,Carrier Tape |
| MCX-Jack | Molex 73415 |
 |
Service offered: Basic T & R, Carrier Tape |
NPI Materials now offers full tape & reel service for the new highly popular 3.5mm X 7.0mm 36/38 pin Quad Flat No lead XON/VQFN package.
An emerging design standard for medium pin-count IC's, this space saving QFN is quickly replacing leaded TSSOP/SSOP packages in high volume applications.
NPI provides full tape and reel support of any quantity large or small in custom reel configurations on an 12mm wide by 4mm pitch conductive carrier tape. The carrier and cover tape is now available for sale in the online store.

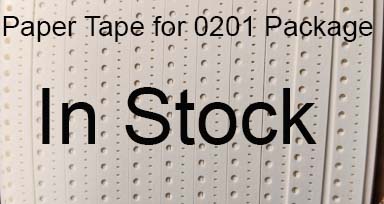

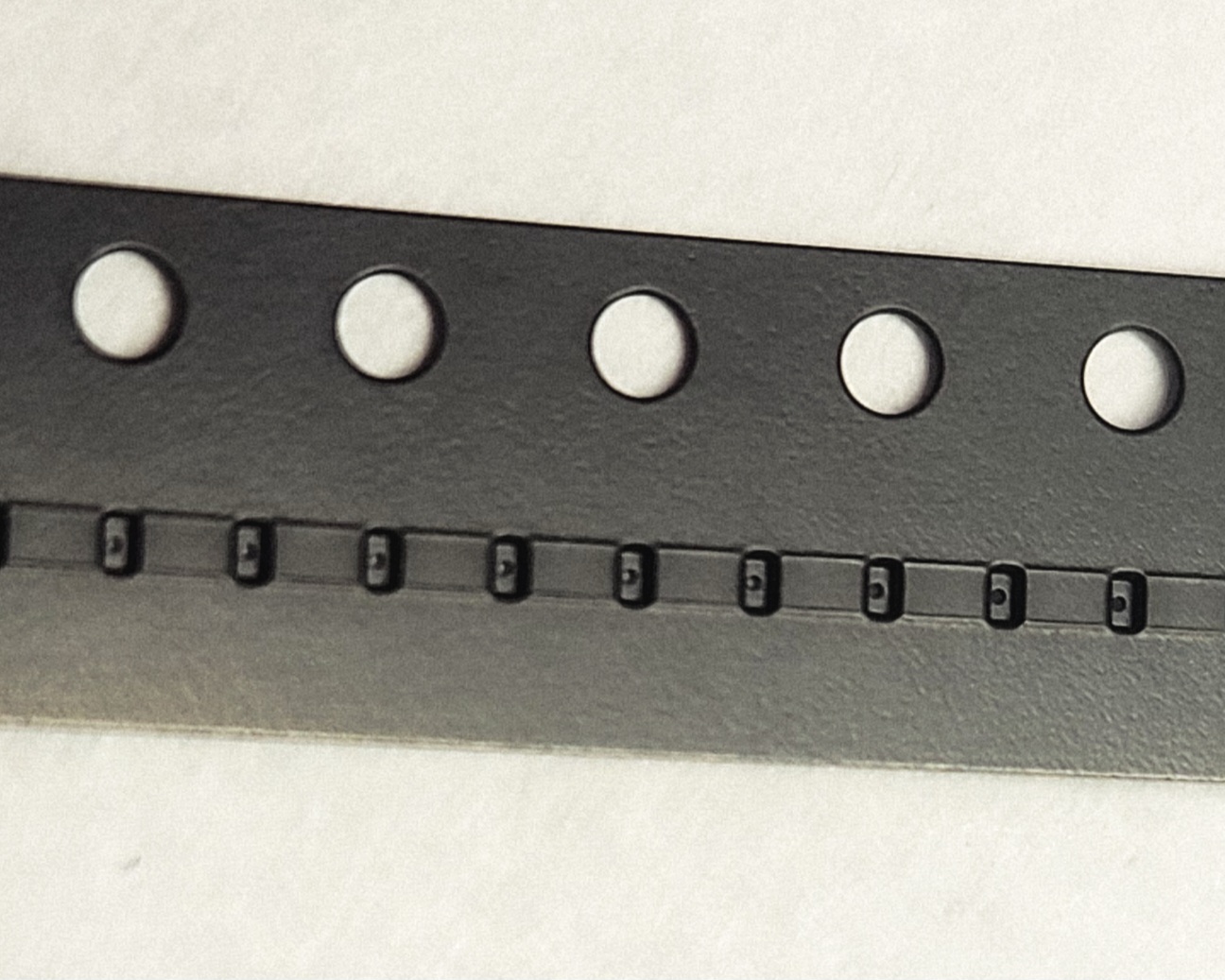

Advanced 3M technology delivers a superb carrier tape for 0201 Packages
Most operators are likely to agree that the 0201 is a very difficult component to process. Bad carrier makes the job ten times more difficult. 3M series 3000 conductive polycarbonate carrier tape is an excellent choice with exact tolerance and a sharper profile that helps the part seat and remain in place during advance before sealing.
This tape is ideal for the 0201 package. It is 8 X 2 CPC, 500 pockets per meter.
The pocket dimensions are Ao - 0.33; Bo – 0.71 and Ko – 0.30mm. The effective thickness of the tape including the raised platform is 0.3mm, suitable for standard feeders. It works best with 3M 2688A UCT, 2671A HAA or 2698 PSA low tribo cover tape.
This particular code uses 3M’s advanced 3D embossing that creates a raised platform. The raised platform helps seal the part in the pocket and does not allow migration over the dam or out to the sealing rails when used with a high quality 3M cover tape.
The pocket design features the perfectly defined edges at depth to hold the component during travel and yet a generously oval top lip that literally guides the component to its seat. This will dramatically improve operator throughput
NPI recently completed operational qualification on the 3M122921 tape. See the qualification summary
This tape normally has a very high MOQ of 30K meters but NPI Materials is working to put the tape within reach of customers for evaluation or with lower volume demand at present.
NPI Materials is offering one evaluation roll of 3M122921 precision series 3000 conductive polycarbonate carrier tape for the 0201 thin package to customers seeking a workable 0201 solution.
We are offering this tape, without the 30K MOQ or set-up charge. These are 100 meter 13” cardboard level wind LW reels. Call 1-855-NPI-REEL for price and delivery and to place orders. Of course high volume orders are also accepted.
** NPI Materials does not guarantee that this tape will fit all 0201 components
